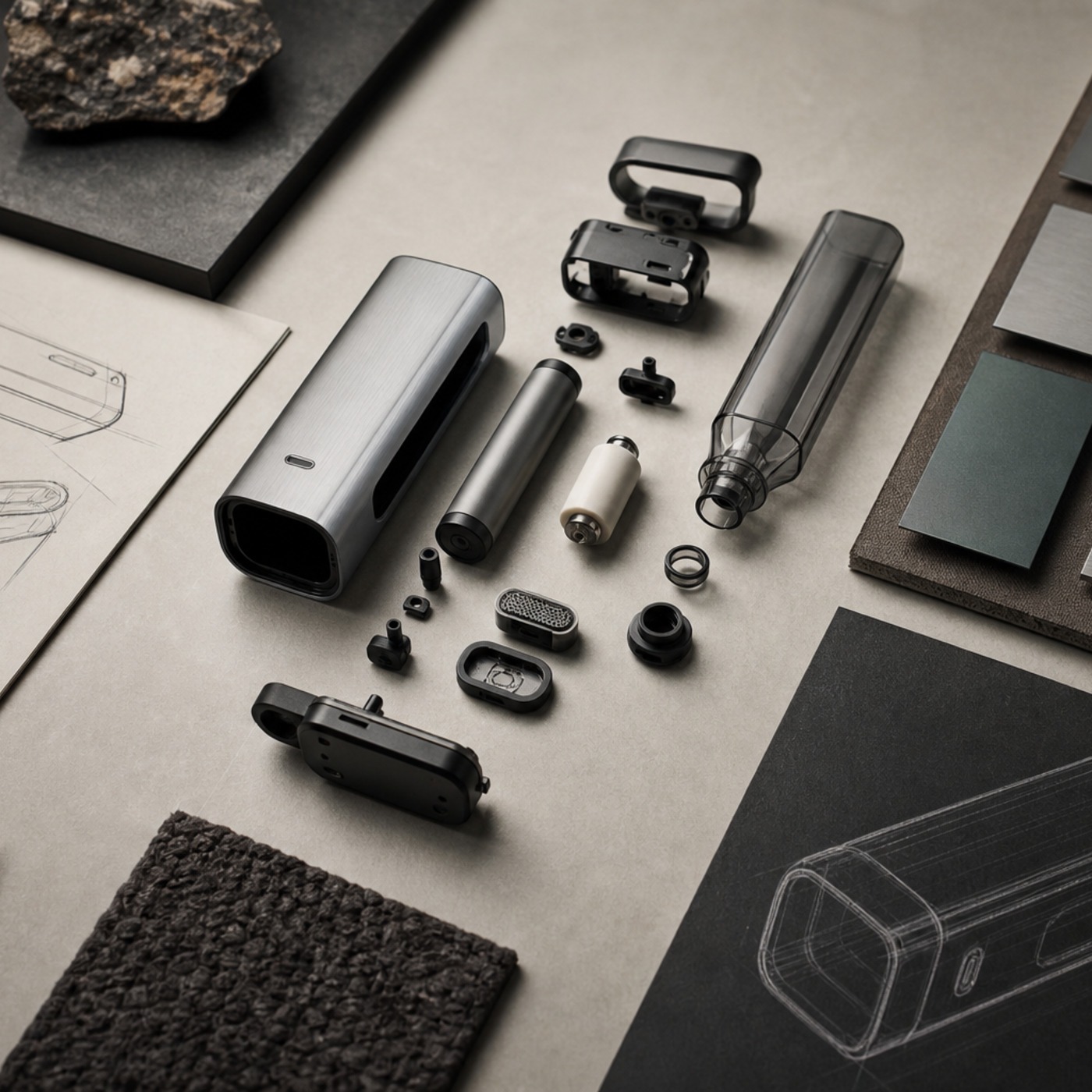

Good vape device industrial design makes a complex internal system feel simple. The designer must organize a battery, reservoir, heating element, airflow path, electronics, seals and charging components inside a compact object while also creating an intuitive grip, clear orientation and manufacturable enclosure.

The strongest products are not styled after engineering is complete. Their form, materials, interaction and internal architecture develop together. That makes vape hardware a useful case study in how industrial design connects visual identity with physical constraints.

Key Design Principles

Begin with the internal component stack and the intended interaction sequence.
Use proportion and ergonomics before adding decorative features.
Treat color, material and finish as functional design decisions.
Make oil visibility and product orientation easy to understand.
Resolve tooling, seams, tolerances and assembly before finalizing the appearance.
Build an adult-oriented visual language that can scale across a product family.

What Defines Good Vape Device Industrial Design?

A successful device balances five objectives: it must accommodate the required hardware, communicate how it is held and oriented, support the intended airflow and activation, express an appropriate brand identity and survive mass production without losing its design intent.

These objectives can conflict. A larger viewing window may improve visibility but reduce structural support. A slimmer body may look elegant but constrain battery capacity or internal clearances. A continuous metal enclosure may feel premium while complicating antenna, charging, assembly or inspection needs.

Industrial design is the process of resolving those tradeoffs into one coherent object. The result should not look like a set of compromises. It should make the necessary decisions feel inevitable.

Designing Around the Internal Architecture

Every concept begins with a spatial envelope. The reservoir establishes capacity and influences height or width. The battery occupies a significant volume and introduces electrical and thermal requirements. The heating system and liquid inlets need a stable relationship with the bottom of the reservoir. Airflow must travel through a controlled route, while seals and structural parts require space of their own.

Design teams often create an early “package model” that represents these internal volumes before committing to the exterior. That model reveals where the enclosure can taper, where a window can open and how much room remains for grip geometry or visual details.

The internal architecture should inform the form without dictating an anonymous box. Designers can use cross-section, curvature and material transitions to give character to the fixed volume. A rounded rectangle may prevent rolling and offer comfortable finger contact. A subtle taper can establish orientation. A recessed window can protect a transparent area while creating a recognizable visual cue.

Ergonomics: Grip, Orientation and Mouthpiece Design

Ergonomics is not one measurement. It is a sequence: pick up, identify the active end, hold, activate, use, check the remaining material, charge and store.

The body cross-section influences all of these actions. Circular forms can feel familiar but may roll on a surface. Flat-sided bodies create stability and clear orientation but can develop uncomfortable edges if the radii are too small. Very thin devices can be discreet, although a narrow edge may concentrate pressure in the fingers.

Mouthpiece design deserves equal attention. Width, taper, curvature and material affect both comfort and the visual identity of the object. The transition from reservoir to mouthpiece must also support assembly and sealing, so a smooth external form cannot be considered independently from the internal connection.

Activation changes the interaction model. A button needs a discoverable location, suitable travel and protection against accidental operation. Draw activation removes a visible control but places greater importance on airflow and feedback. Indicator lights should confirm status without dominating the product.

Appearance models and functional prototypes answer different questions. A non-working model can test proportion and grip, while a working sample reveals how the form interacts with airflow, heat and assembly. Both should be reviewed before tooling.

CMF: Color, Material and Finish

CMF—color, material and finish—determines how the object looks, feels, wears and fits within a brand portfolio. On compact hardware, a small change in gloss, texture or seam quality can strongly influence perceived value.

Materials

Metal enclosures can offer rigidity, precise edges and a cool initial touch. Engineered polymers allow complex molded features, lighter weight and transparent areas. Elastomers or soft-touch coatings can add grip, while PCTG and related copolyesters are often used where reservoir visibility and molded geometry are important.

No material is automatically premium. A carefully detailed polymer part may feel more resolved than a metal shell with inconsistent gaps or a fragile coating.

Color

Color needs to work across different substrates and processes. The same digital value can appear different on anodized aluminum, painted metal, molded polymer and printed packaging. Designers should approve physical samples under multiple lighting conditions rather than relying on a monitor.

Adult-use products also require restraint. Color can create recognition without resembling toys, candy packaging or youth-oriented accessories. A controlled core palette with limited seasonal variations is often more durable than an unlimited collection of novelty finishes.

Finish

Gloss changes perceived form because it controls how light moves across the surface. Matte finishes can reduce visible fingerprints and create a quieter appearance, while polished accents can emphasize a transition or control. Texture can improve grip but may also trap dirt or complicate graphic application.

Durability must be part of the CMF brief. Coatings should be assessed for abrasion, oils from handling, packaging contact and normal cleaning. The most attractive sample on day one is not necessarily the best finish after repeated use.

Making Oil Visibility Part of the Design

A viewing window is both a functional interface and a visual feature. It helps communicate remaining material, identifies the reservoir and reinforces orientation without requiring a screen.

Designers can reveal the entire tank, create a narrow vertical window or use a geometric opening. Each option affects structure, molding and assembly. The window must remain legible in common hand positions, not just in a front-facing render.

The relationship between the oil color, transparent material and surrounding finish also matters in photography and retail presentation. A window can become a signature brand element when its geometry is repeated across related models. It should still be designed for inspection, cleaning and tolerance control rather than treated as a purely graphic cutout.

Design for Manufacturing Without Losing the Concept

Design for manufacturing, or DFM, translates visual intent into repeatable parts and processes. It begins before the final render, when the concept is still flexible enough to change.

Key questions include:

Where will molded parting lines and gates appear?
Which surfaces are cosmetic, and how will they be protected during assembly?
Are wall thicknesses, draft angles and radii suitable for the selected process?
Can parts locate themselves without excessive operator adjustment?
Which dimensions are critical to sealing, airflow and visual alignment?
Can colors and finishes remain consistent across batches?
How will the assembled product be measured and inspected?

A seam cannot simply be hidden in a rendering. It must be placed where it supports assembly and looks intentional. Likewise, an extremely sharp edge may be visually appealing but incompatible with tooling, coating thickness or comfortable handling.

DFM does not mean allowing manufacturing to erase the design. It means identifying the non-negotiable qualities—perhaps a silhouette, window, tactile transition or mouthpiece profile—and simplifying other elements so those qualities survive production.

Building a Scalable Product Design Language

Brands often need more than one device. A portfolio may include all-in-one vape formats, cartridges, batteries and pods with different internal architectures. The challenge is to create family resemblance without forcing every product into the same shape.

A scalable language selects a limited set of repeatable cues. These may include the angle of a mouthpiece, the geometry of an oil window, a signature cross-section, a light pattern or a consistent transition between transparent and opaque materials.

The value of CILICON product design capabilities is best understood within this platform context. The company presents industrial design alongside multiple hardware formats, heating technologies, OEM/ODM development, assembly and packaging services. Connecting those disciplines can help a visual language move across products while each model retains an appropriate internal architecture.

Brands should define which cues are fixed and which are adaptable. A recognizable window may remain constant while dimensions change. A ...
